JINZHU Rotary Table Polishing Machine with 2 Grinding Heads
MOQ: 1 set
Certification: CE / ISO 9001
Start Port: Shenzhen Port
Lead time: 25 work days
Packaging: Wooden case
Payment: T/T, PayPal, Cash
Shipping Options: Sea Freight, Air Freight, Train, Truck
Terms: EXW, FOB, CIF
Product Introduction
Product Information
This multi-functional rotary table polishing machine is specifically designed to meet the polishing requirements of various hardware products, and is particularly suitable for processing products with cylindrical shape, circular ring shape, and spherical shape.
Product Configuration
To adapt to different production scales, efficiency requirements, and complexity of workpieces, this equipment provides multiple grinding head configuration options:
● Dual grinding head model: Economical and practical, suitable for relatively simple requirements or small batch production, can meet basic grinding and polishing needs.
● Three grinding head model: Excellent comprehensive performance, can flexibly arrange multiple processes such as rough grinding, medium grinding, and fine polishing to proceed simultaneously, significantly improving processing efficiency and meeting most conventional production needs.
● Four grinding head model: Maximum productivity, especially suitable for large-scale production or scenarios requiring multiple complex processes (such as rough grinding, fine grinding, rough polishing, fine polishing) to be completed simultaneously, ensuring efficient output.
Product Parameters
|
Voltage |
380V-50hz 3-phase |
|
Main Power |
3kw*2 |
|
Total power |
8.32kw |
|
Grinding heads |
2 |
|
Air pressure |
≥ 0.55mpa |
|
Spindle speed |
2200r/min |
|
Turntable interval time |
5~20/s (Adjustable) |
|
Waxing device(option) |
Automatic waxing |
|
Consumable specifications |
Φ250*50mm |
|
Consumables up and down stroke |
120mm |
|
Work position |
8 |
|
Consumable swing range |
0~40mm |
|
Installation size |
2300*1200*1900mm(L*W*H) |

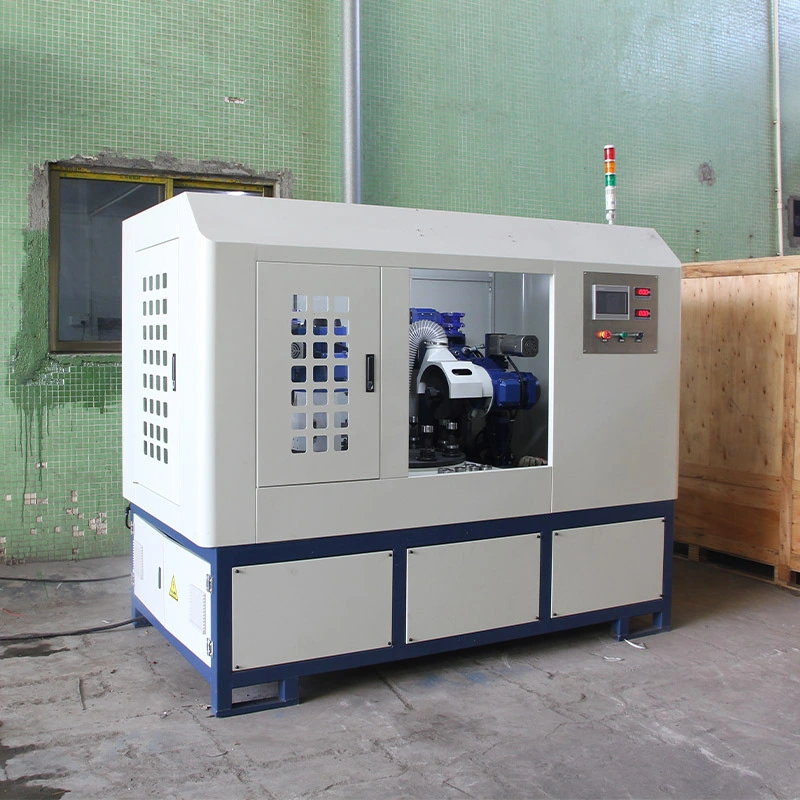

product display
It is suitable for surface sanding, grinding and polishing of dome-shaped, cylindrical, annular and other hardware products. The machine has 2 grinding heads, 3 grinding heads and 4 grinding heads. Customers can choose according to actual needs or customize the machine according to process requirements.
