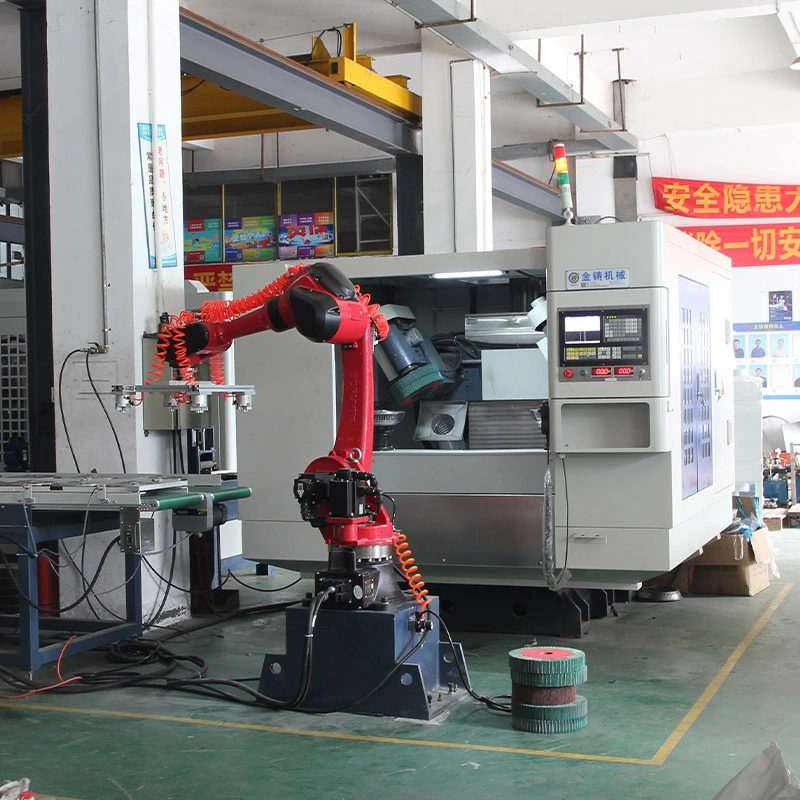

JINZHU CNC 5-Axis Polishing Machine with Robotic Feeding and Blanking for Metal Products
Used for surface polishing treatment of stainless steel components, the whole machine adopts two sets of working grinding heads and is equipped with mechanical arms for loading and unloading. Machines can be customized according to the customer's product shape, process, output, etc.
5.0
Certification:
CE ,ISO 9001
MOQ:
1
Lead time:
40 Work Days
Packaging:
Wooden case
Payment:
T/T,PayPal,Cash
Start Port:
Shenzhen Port
Terms:
EXW,FOB,CIF,DDU,DDP
Shipping Options:
Sea Freight,Air Freight,Train,Truck
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Information
This machine It can be widely used for surface grinding and polishing of household appliances, bathroom hardware, automotive accessories, and hardware components, such as door handles, phone cases, tablet cases, kettles, locks, and other products.
Machines can be customized according to the customer's product shape, process, output, etc.
Product Parameters
|
Voltage |
380V-50hz 3-phase |
|
Main Power |
5.5kw |
|
Total power |
19kw |
|
Robot |
20KG 6-Axis |
|
Servo motor |
5 sets |
|
Servo motor power |
1.5kw*2 0.75kw*2 3kw*1 |
|
Processing position |
2 |
|
Consumable specifications |
Φ300*50mm |
|
Air pressure |
0.55mpa |
|
Spindle speed |
2200r/min |
|
Installation size |
2400*1860*2300mm |
|
Machine weight |
3000kg |
product display
2上下料装置
3工作台细节
4机器实拍
faq
1
What types of metal materials can this machine polish?
This machine is suitable for polishing a wide range of metal materials, including stainless steel, aluminum, copper, zinc alloy, titanium alloy, and more. Whether working with hard or soft metals, the machine can deliver consistent, high-quality polishing results by adjusting process parameters accordingly.
2
Can the machine be customized for our specific products?
Yes, the machine can be fully customized based on your product’s shape, polishing process, production cycle, and output requirements. We offer tailored mechanical and control system designs to meet your specific needs. Simply provide us with product samples or technical drawings, and we will develop a suitable custom solution.
3
What surface finish can be achieved after polishing?
The machine is equipped with high-precision polishing modules that can achieve a mirror-like surface finish through multiple processing stages. The final surface roughness can reach Ra 0.05μm or better, making it ideal for industries with stringent surface quality standards, such as medical devices, high-end consumer electronics, and precision metal parts.
