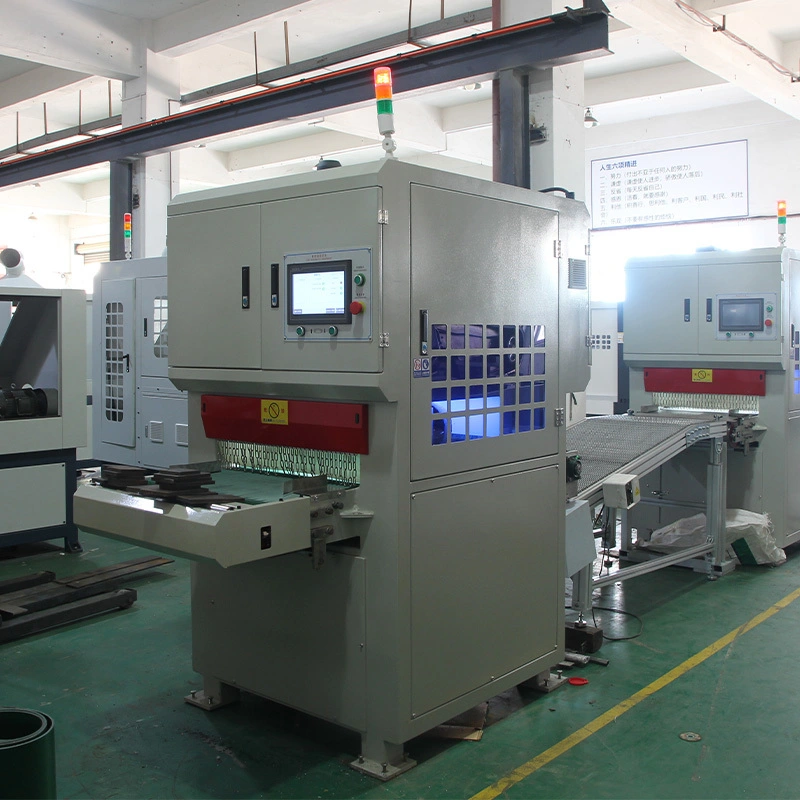

JINZHU Deburring Machine 800 width

Jinzhu metal Deburring machine is an efficient, precise and automated burr removal solution specifically designed for modern manufacturing industries. It aims to address issues such as burrs, sharp edges and protrusions that occur during the processing of metal components (such as machined parts, castings, stamped parts, 3D printed parts, etc.), significantly improving the surface quality, dimensional accuracy and functionality of the workpieces, while ensuring operational safety, reducing labor costs, and is a key equipment for enhancing product quality and production efficiency.

MOQ: 1 set

Certification: CE / ISO 9001

Start Port: Shenzhen Port

Lead time: 25 work days

Packaging: Wooden case

Payment: T/T, PayPal, Cash

Shipping Options: Sea Freight, Air Freight, Train, Truck

Terms: EXW, FOB, CIF, DDU, DDP

Inquiry

Write a Review

Product Introduction

Product Information

The machine operates in an assembly line mode, with two main machines synchronously processing the front and back of the workpiece. Each main machine is equipped with four automatic rotating polishing wheels, and the polishing wheel speed can reach 9-20 revolutions per second. The discharge port of the front-end host has magnetism, which can achieve automatic flipping of metal workpieces. The average speed of the mid-range feeding belt transmission is 1-8 meters per minute, ensuring smooth transmission of workpieces without falling off. After the positive and negative deburring work is completed, a demagnetizing machine is also installed at the end of the production line to demagnetize the workpiece.

Product Configuration

In addition, the machine includes a water circulation device that helps reduce heat generated by friction and prevents workpieces from overheating, thereby extending the life of the polishing tools and improving surface quality. The water system also helps suppress dust and maintain a more stable polishing process.

Simple in structure and easy to maintain, this polishing machine is a practical and eco-friendly solution for a wide range of industrial applications. Its dust-proof design further ensures safe operation and long-term reliability in demanding work environments.

Product Parameters

Voltage Supply	380V-50Hz
Total Power	10.5kw
Rotating main motor	1.5kw
Conveyor motor	0.75kw
lifting motor	0.75kw
capacity	About 100pcs/h
Machine Size	600014002000mm
Machine Weight	About 1200kg

product display

IMG_1263

IMG_1264

IMG_1265

IMG_1266

IMG_1366

IMG_1368

faq

Can this machine be customized for different products?

Of course, we can customize the workpiece according to your needs for deburring, such as the thickness, length, and material of the workpiece. We can also adjust the speed of the polishing wheel, the length of the conveyor belt, and the size of the workbench according to your requirements.

Will the machine produce a lot of noise and dust during its operation?

This machine is equipped with an environmentally friendly cover, which can fully meet your environmental needs. The enclosed design can isolate noise and greatly reduce dust.

Will using this machine damage the metal surface of the workpiece?

You don't have to worry about this. Our machine has guaranteed accuracy, does not damage the surface of the workpiece, and the polishing effect is uniform, thus achieving the effect of removing burrs without dead corners.
