JINZHU Automatic Metal Polishing Machines — Engineered for Efficiency Since 2006, OEM/ODM Supported

English

JINZHU 4 position motor polishing machine environmental-friendly type 1

JINZHU 4 position motor polishing machine environmental-friendly type 2

JINZHU 4 position motor polishing machine environmental-friendly type 3

JINZHU 4 position motor polishing machine environmental-friendly type 4

JINZHU 4 position motor polishing machine environmental-friendly type 5

JINZHU 4 position motor polishing machine environmental-friendly type 6

JINZHU 4 position motor polishing machine environmental-friendly type

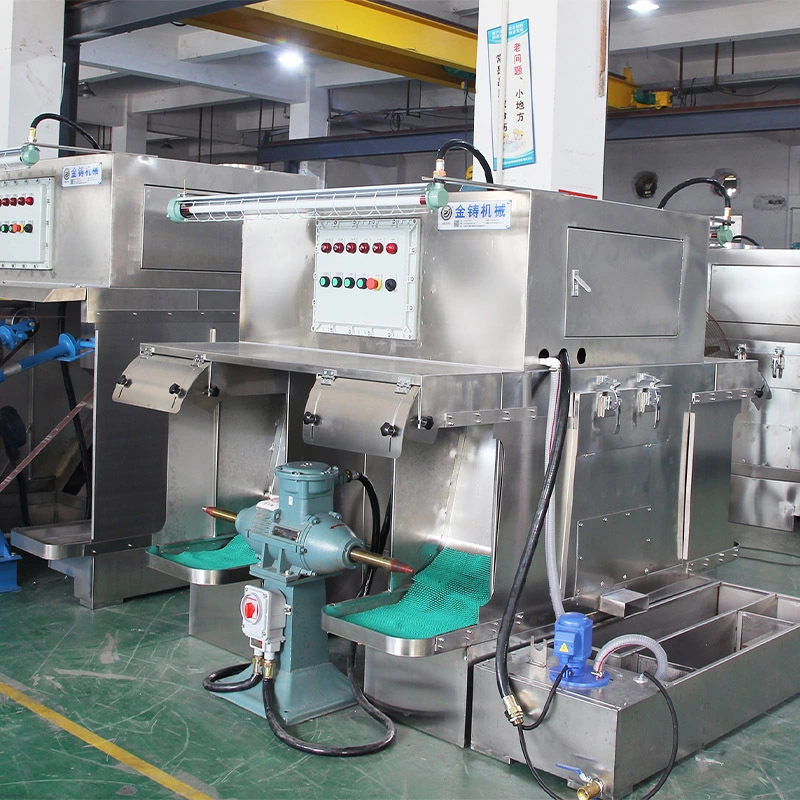

Widely used for polishing and grinding of hardware, plastic, furniture, bathroom and other products. This equipment is a four station manual polishing machine equipped with a dust collection system and a water circulation device. It is simple, practical, environmentally friendly, and dust-proof.

MOQ: 1 set

Certification: CE / ISO 9001

Start Port: Shenzhen Port

Lead time: 25 work days

Packaging: Wooden case

Payment: T/T, PayPal, Cash

Shipping Options: Sea Freight, Air Freight, Train, Truck

Terms: EXW, FOB, CIF, DDU, DDP

Inquiry

Write a Review

Product Introduction

Product Information

This machine belongs to the semi-automatic motor polishing machine, which is safer, more environmentally friendly, and more efficient compared to traditional motor polishing equipment.

This device is suitable for deburring, grinding, and polishing various types of irregular hardware components, such as hardware product processing in the fields of bathroom, medical equipment, automotive parts, etc.

It has four independent workstations that can accommodate four workers operating simultaneously.

Product Configuration

In addition, the machine includes a water circulation device that helps reduce heat generated by friction and prevents workpieces from overheating, thereby extending the life of the polishing tools and improving surface quality. The water system also helps suppress dust and maintain a more stable polishing process.

Simple in structure and easy to maintain, this polishing machine is a practical and eco-friendly solution for a wide range of industrial applications. Its dust-proof design further ensures safe operation and long-term reliability in demanding work environments.

Product Parameters

Voltage	380V-50hz
Main Power	5.5kw(explosion-proof)
Total power	13.15kw
Rotating speed	1400、2800r/min(Two-speed adjustment)
Electric box	explosion-proof
Water pump	0.15kw
Vacuum cleaner	3kw(explosion-proof)
The height of the main shaft from the ground	850mm
The height of the main shaft from the ground	350mm
Air volume	8000m³/h
Dust removal efficiency	90%
Installation size	180014001800 LWH

product display

2 (28)

3 (26)

faq

What is the daily polishing output that your machine can achieve?

It depends on the shape, structure, and size of your product. The simpler the shape, the shorter the required time. If you don't need a four station style, we also have a dual station style. Of course, if you have high production requirements, we also have more intelligent fully automatic equipment that can be customized according to your needs. Please feel free to inquire.

Is this machine safe to use?

Compared to traditional bare metal polishing, this one is definitely safer. You can see from our presentation video that this machine is equipped with an independent protective cover, but this model belongs to the semi-automatic polishing machine category. Workers still need to take proper protective measures during use, such as wearing gloves and goggles. If you have higher requirements for security, please feel free to consult our other more advanced products.

Is the post maintenance cost of this machine high?

Any machine will experience varying degrees of wear and tear after a certain period of use, depending on how frequently you use the machine and whether you are using it correctly. Our machine is equipped with polishing wheels that are very wear-resistant and have low consumable costs. Other components adopt modular design, and key components are easy to replace.
